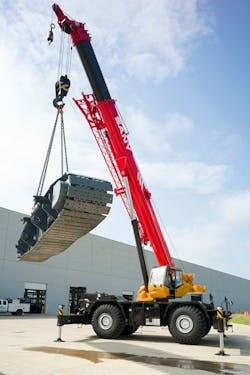

SANY SRC885 Rough-Terrain Crane

Sany expands its line of rough-terrain cranes with the SRC885, rated at 85 tons lifting capacity at a 10-foot radius.

June 24, 2013

Sany expands its line of rough-terrain cranes with the SRC885, rated at 85 tons lifting capacity at a 10-foot radius. It can reach up to 209.7 feet with a five-section, full-power boom. Overall weight is 115,880 pounds. It is powered by a Tier 4-Interim 275-horsepower Cummins engine that integrates with the hydraulic system. It has 4x4 hydraulic powered steering, and three-position outriggers level the crane with up to 12.4 inches ground penetration and maximum horizontal extension of 24 feet.

Sany SRC885 Specifications

  • Main boom reach: 38.7 to 147.6 feet
  • Boom extension: 30.2 to 52.5 feet
  • Max. hoist line pull: 20,559 pounds with 841 feet of 3/4-inch diameter line
  • Length: 46 feet 11 inches
  • Width: 11 feet
  • Height: 12 feet 6.5 inches
  • Tail swing: 14 feet 11 inches
  • Total counterweight: 28,660 pounds
