Volvo SD115 Soil Compactor

Volvo SD115 compactor weighs 25,690 pounds and has been upgraded to Tier 4-Interim compliance with Volvo engines: either a four-cylinder, 147.5-horsepower version or six-cylinder, 173-horsepower unit. The operator can adjust amplitude from the control panel, and can also choose two drum frequencies with a five-freqency feature optional. A center joint allows 38 degrees of articulation and 17 degree of drum oscillation for the 84-inch drum.

Related To:
April 2, 2013

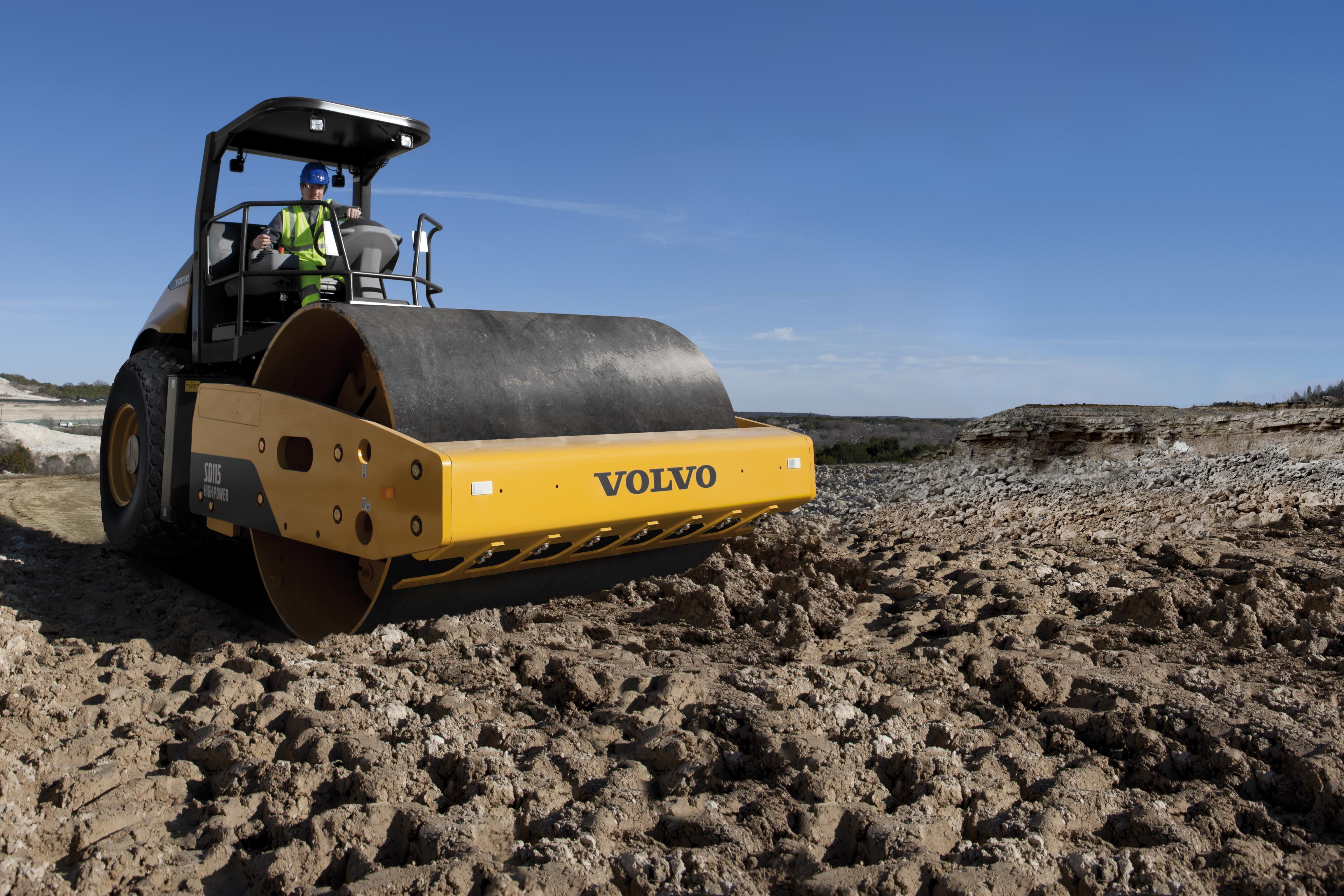

1654795864146 Volvo Sd115 Compactor

Volvo SD115 compactor weighs 25,690 pounds and has been upgraded to Tier 4-Interim compliance with Volvo engines: either a four-cylinder, 147.5-horsepower version or six-cylinder, 173-horsepower unit. The operator can adjust amplitude from the control panel, and can also choose two drum frequencies with a five-frequency feature optional. A center joint allows 38 degrees of articulation and 17 degree of drum oscillation for the 84-inch drum. The No-Spin differential provides traction and eliminates tire slippage, and Ultra-Grade traction system for slippery surfaces and steep inclines is optional.

Volvo SD115 Compactor Specifications

SD115 (smooth drum)

  • Engine: Volvo D4
  • Operating weight: 25,690 pounds
  • Drum width: 84 inches
  • Vibration frequency: 1,850 vpm, 31 Hz
  • Centrifugal force: 46,600 pounds

SD115 (with padfoot drum)

  • Engine: Volvo D4
  • Operating weight: 26,020 pounds
  • Drum width: 84 inches
  • Vibration frequency: 1,650 vpm, 28 Hz
  • Centrifugal force: 59,400 pounds
