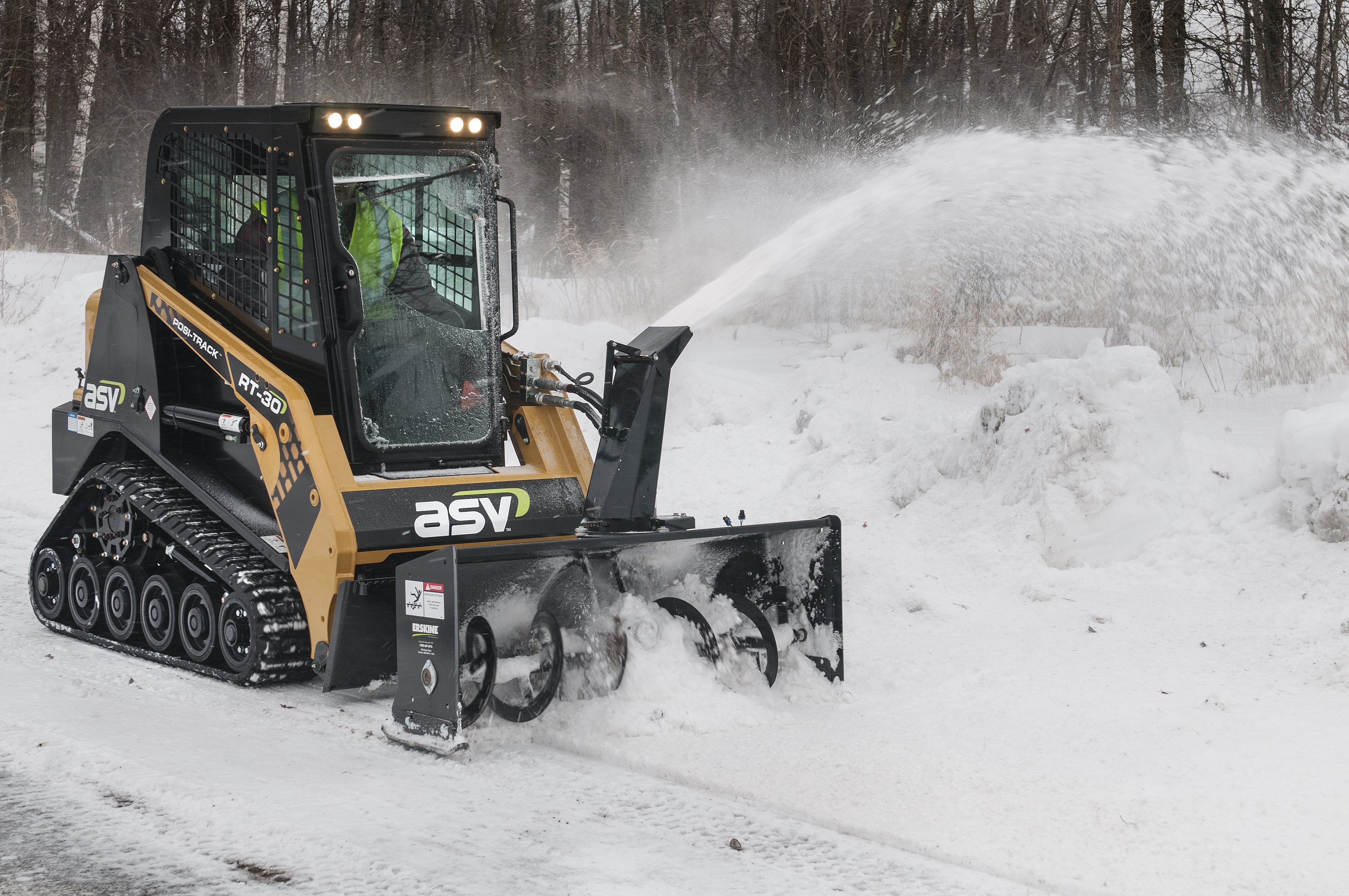

ASV RT-30 Compact Track Loader

March 28, 2017

The RT-30 is a radial-lift compact track loader with an operating weight of 3,600 pounds, width of 48 inches, and a lift height of 8.4 feet designed to compete with mini skid steers. Rated operating capacity is 665 pounds, and tipping load is 1,900 pounds.

The undercarriage features the Posi-Track rubber track suspension, a single-level suspension made up of two independent torsion axles per undercarriage. Standard 11-inch-wide tracks provide ground pressure of 3 psi.

The 32.7-horsepower Perkins diesel engine produces 64.39 lb.-ft. of torque. Planetary drive motors transfer the torque to the patented internal-drive sprockets. Internal rollers prevent friction loss in the undercarriage, resulting in all power being transferred to the track regardless of drive speed.

The auxiliary hydraulic system operates with a 10-gpm pump capacity and 3,000 psi. The machine includes large line sizes, hydraulic coolers, and direct-drive pumps.
