Link-Belt Adds TCC-2500 Crawler Crane

Nov. 4, 2016

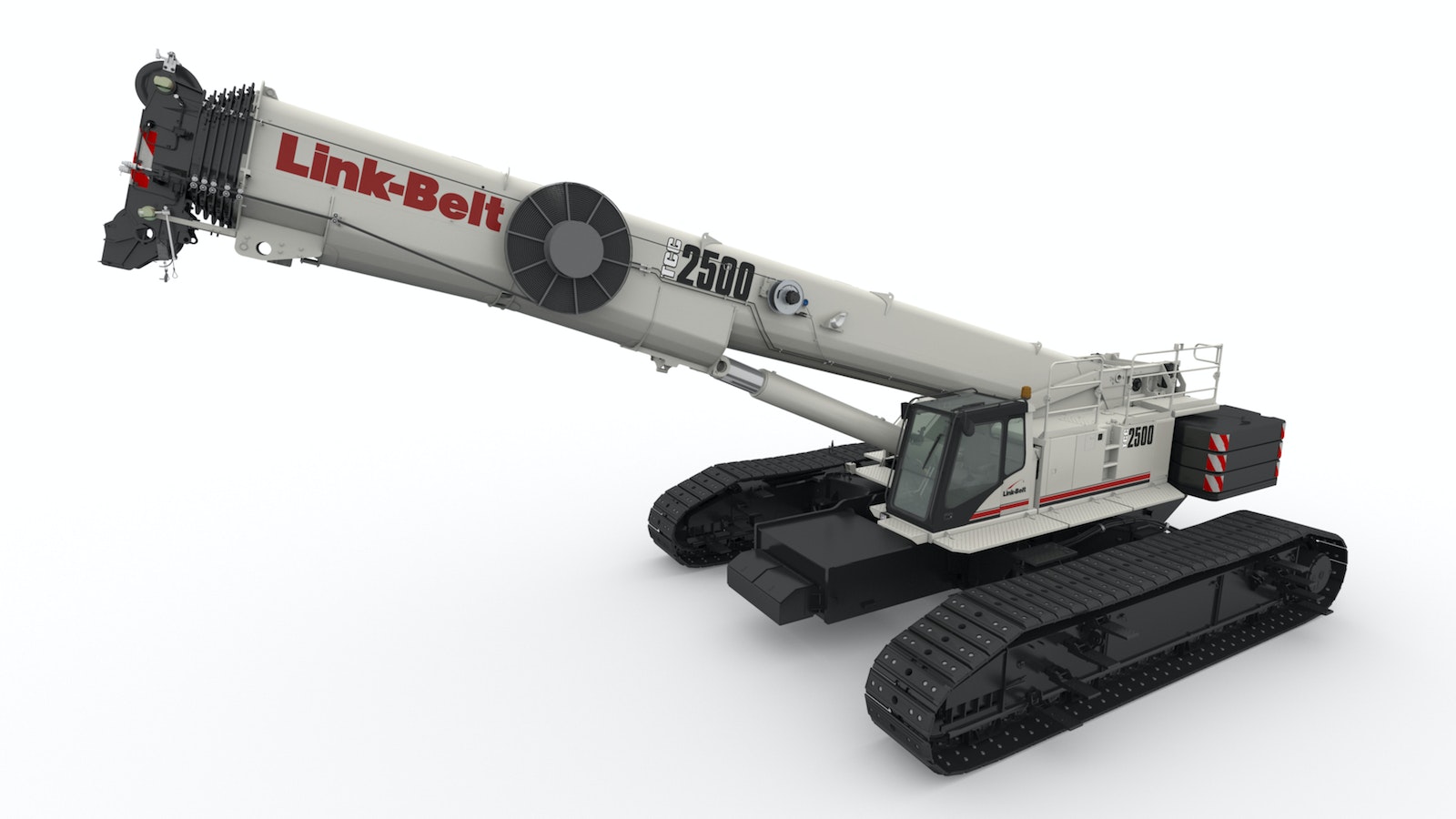

The TCC-2500 telescopic crawler crane has been added to the company’s crane lineup in the 250-ton category. It has a seven-section formed boom ranging from 43.7 to 223 feet, and has eight boom extend modes. A three-piece offsettable fly measures 12, 40, and 67 feet and the boom can also be equipped with two 25-foot boom extensions for an overall tip height of 346 feet.

An extra wide winch design can handle its maximum permissible line pull through the fourth layer. The rear auxiliary winch can be removed for transport weight reduction and a power pinning system mitigates work at height exposure.

The TCC-2500 has a main transport load weights under 106,000 pounds. Once off a trailer, carbody jacks can be deployed via remote control. On jacks, the crane sits as a solid self-assembly platform with hook and pin side frames that hydraulically pin. The TCC counterweight system attaches 154,000 pounds of upper counterweight and is a 9-piece modular design that transports on seven overflow loads, all 44,000 pounds or less.
