JLG Intros Multi-reverse Camera Option for Telehandlers

March 1, 2021
JLG has introduced a multi-reverse camera system for its SkyTrak telehandlers.

JLG has introduced a multi-reverse camera system for its SkyTrak telehandlers.

The optional feature increases job site awareness by displaying multiple views from behind the machine—left, right, and rear. The multi-reverse camera system can be used for day or night operation and features three components: Left- and right-side back-up cameras, rear back-up camera and a tri-view monitor.

Left- and right-side back-up cameras

These compact back-up cameras mount to the back of the telehandler and provide a wide, 170-degree all-encompassing viewing angle behind the machine. Equipped with four infrared lights, the cameras provide high-quality pictures during day or night operation. The images are crisp and clear thanks to the 620 TV lines, and the completely waterproof encasing (IP68 rating) allows operators to use these cameras in all weather conditions.

Rear back-up camera

The RVS-812N 120-degree ultra-wide viewing angle backup camera is the highest quality camera available on the market today, the company says. It has a 250,000-pixel, 2.1-mm lens with 30 infrared illuminators for night vision, enabling operators to see in total darkness. The diecast casing of the camera is completely waterproof (IP69K rating) to withstand all weather conditions, and the built-in heater can withstand temperatures to -49 F, keeping the camera warm in the coldest of climates.

Tri-view monitor

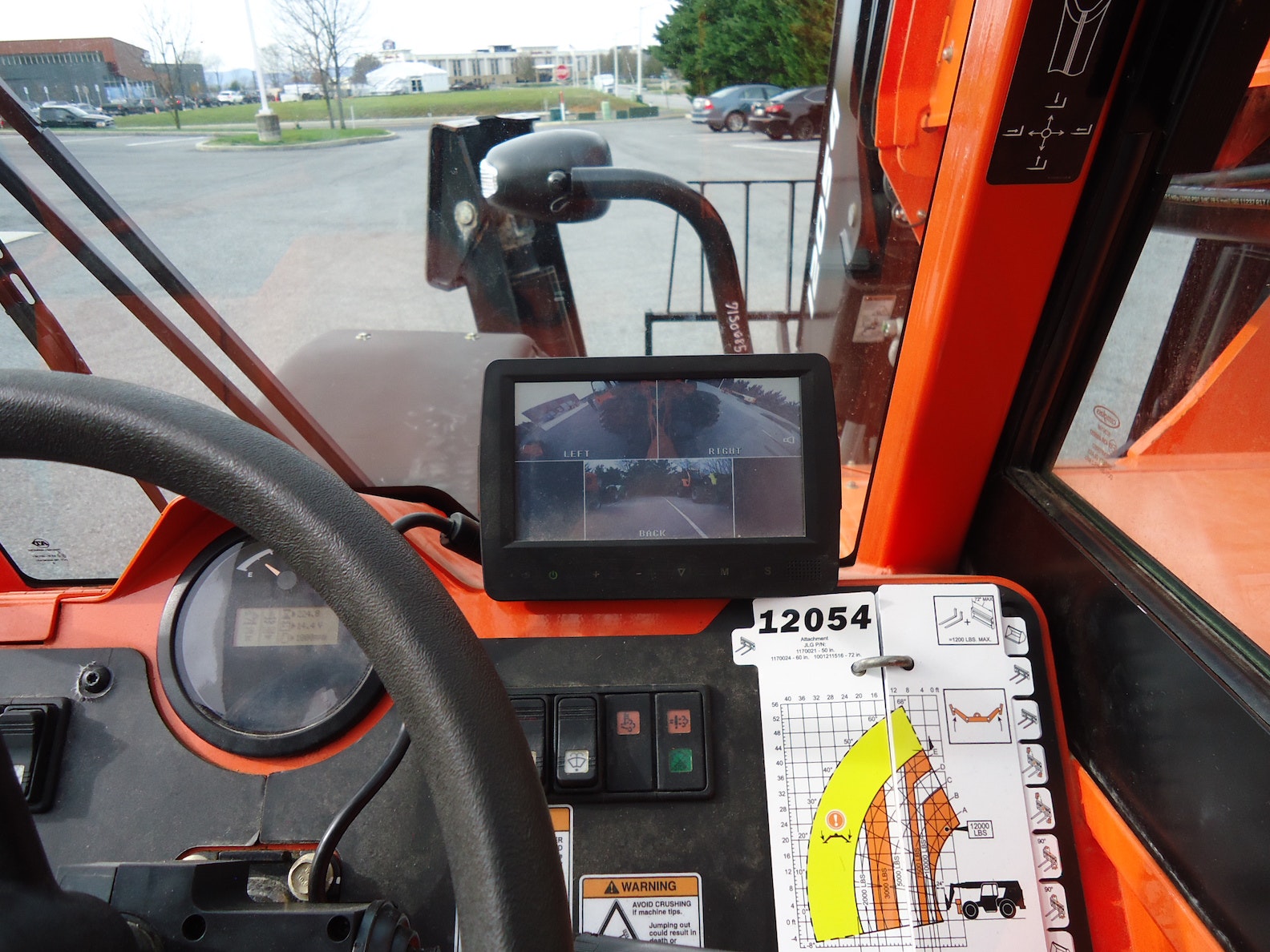

The 7-inch, tri-view monitor features a TFT LCD digital color display with auto dimming for low light conditions. It is equipped with touch screen technology and is completely waterproof (IP69K rating).
