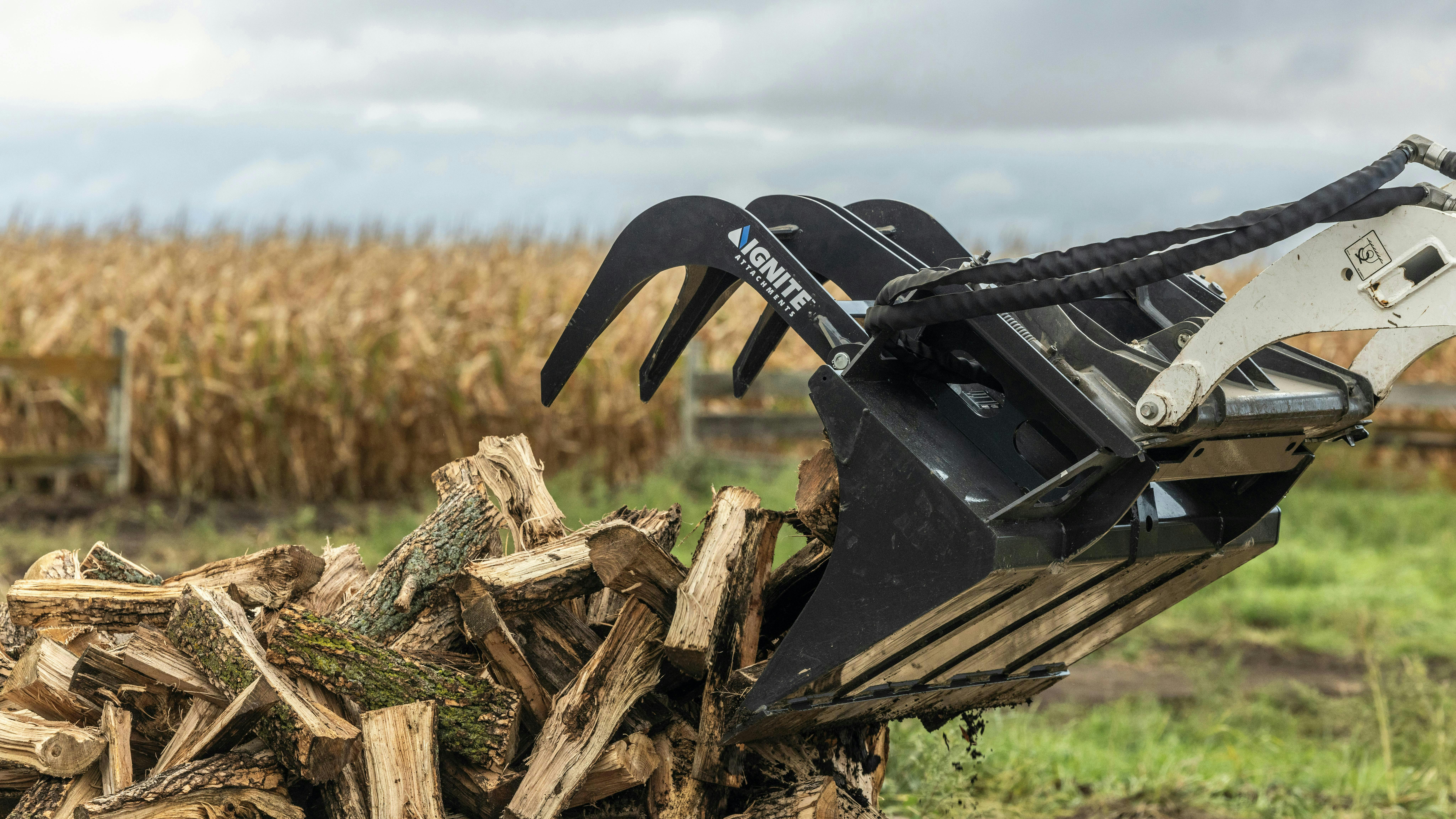

The mini bucket grapple features a laser-cut Grade 50 steel design. This results in a tighter fitting attachment with a long service life, according to the company.
With a grapple opening of 26.6 inches and a minimum height of 22.1 inches, the mini bucket grapple easily maneuvers in tight spaces.
The single 2.25-inch bore by 1-inch rod cylinder is located behind the bucket, rather than on top, for protection even in the most demanding applications. Design combines standard Faster flat-faced couplers and full-length nylon hose sleeves.
Mini Rock Grapple
Ignite Attachments Rock Grapple
Rock Grapple on site.
The mini rock grapple also includes Ignite’s dual interface. These brand-agnostic attachments easily pair with both mini Bob-Tach and CII machines with the faceplate design, allowing for integration with mixed fleets or new carriers.
The grapple opening is 25.9 inches with a tine spacing of 3 inches for effective rock and debris removal.
Mini Rake Grapple
Ignite Attachments
Rake grapple in use on site.
The mini rake grapple features slightly wider tine spacing, 6.75 inches on the 36-inch model, which allows operators to remove debris with less soil disturbance. It features a 36-inch grapple opening.
Greaseable pins and heavy-duty cylinder protection minimize downtime.
