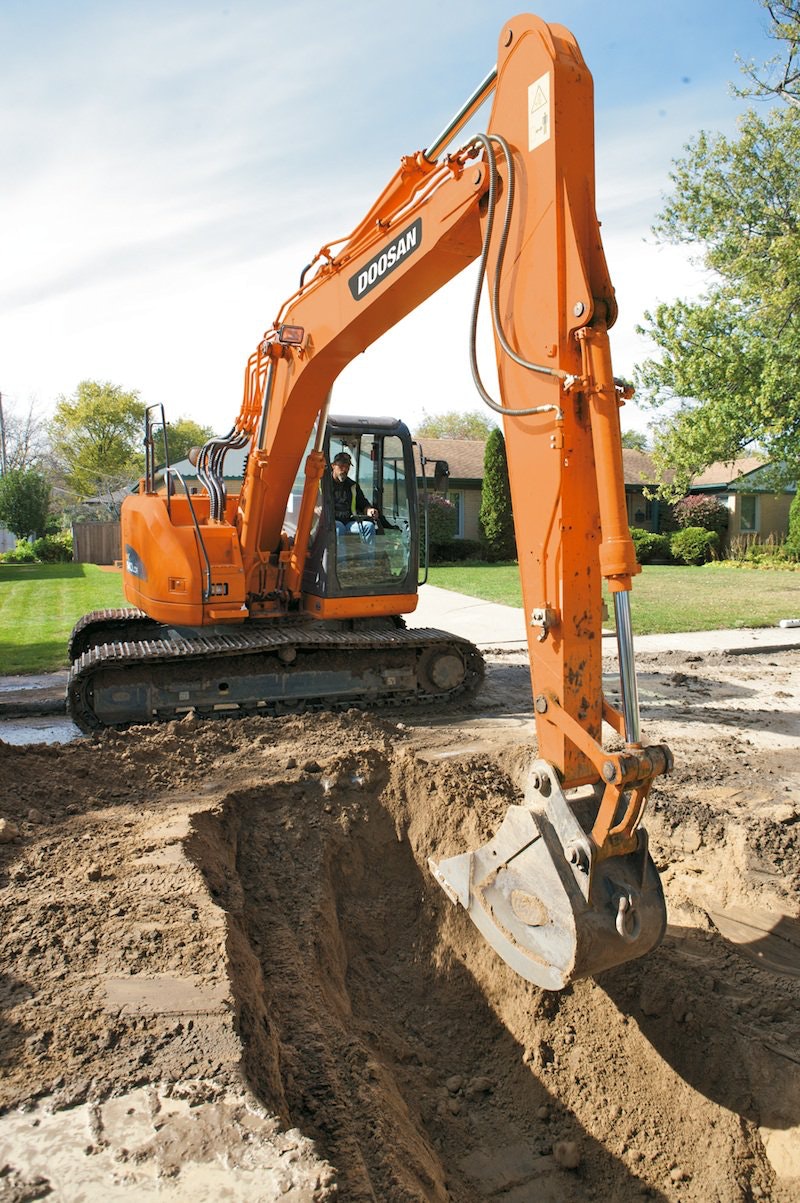

Doosan DX140LCR-3 Excavator

Related To:
June 20, 2013
1654796113384 Doosan Dx140lcr 3 Excavator 0

Model DX140LCR-3 has a 5-foot tail swing radius, which produces a 9-inch overhang over the side of the excavator. The 16-ton machine is Tier 4-Interim compliant, with a Cummins QSB 4.5 engine that delivers 109 horsepower at 2,200 rpm. The machine’s electronic power optimizing system includes four work modes, auto-idle, and machine diagnostics. An optional straight-travel pedal provides a single foot pedal that operates both tracks.

Doosan DX140LCR-3 Specifications

  • Engine: 4-cylinder Cummins QSB 4.5 iT4
  • Power: 109 horsepower at 2,200 rpm
  • Operating weight: 33,510 pounds
  • Tail swing radius: 5 feet
  • Max. dig reach: 28 feet 5 inches
  • Max. dig depth: 19 feet 8 inches
  • Bucket digging force: 24,471 pounds
  • Arm digging force: 13,228 pounds
