JLG X660SJ boom lift

June 8, 2023
500-pound capacity for up to two workers

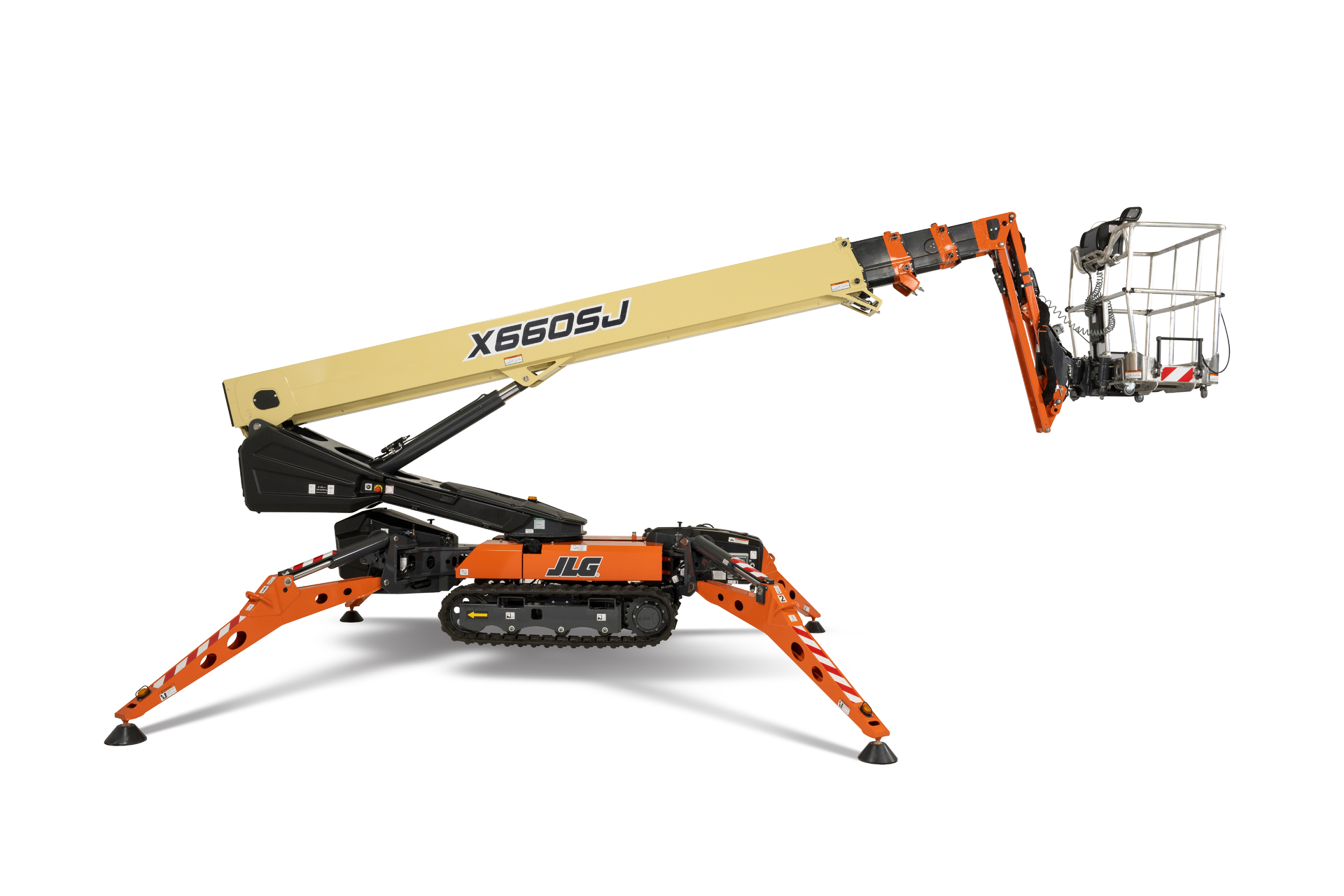

Model X660SJ JLG telescoping boom lift is a straight-jib (SJ) compact crawler mobile elevating work platform (MEWP). Platform height is 65 feet 7 inches with 500-pound capacity for up to two workers. Horizontal reach is 39 feet.

The crawler-mounted lift has 40-percent gradeability. Its 2-foot 11-inch profile and 7,400-pound footprint allow it to go through gates and standard doorways.

With a single control function, operators can boom up/down, while also telescoping out/in, so that the platform travels a path perpendicular to the ground. Multiple position, one-touch self-leveling outriggers provide flexibility to work in tight areas and to maximize the working envelope.

“Go Home” and “Back to Work” functions return the lift to stowed or a recorded work position. Software optimizes the path to the stowed or saved work position based on machine stability.

A Kubota diesel engine is standard, and a lithium-ion battery and AC drive system option is available.
