Bobcat TL723, TL923 Telehandlers

April 27, 2022

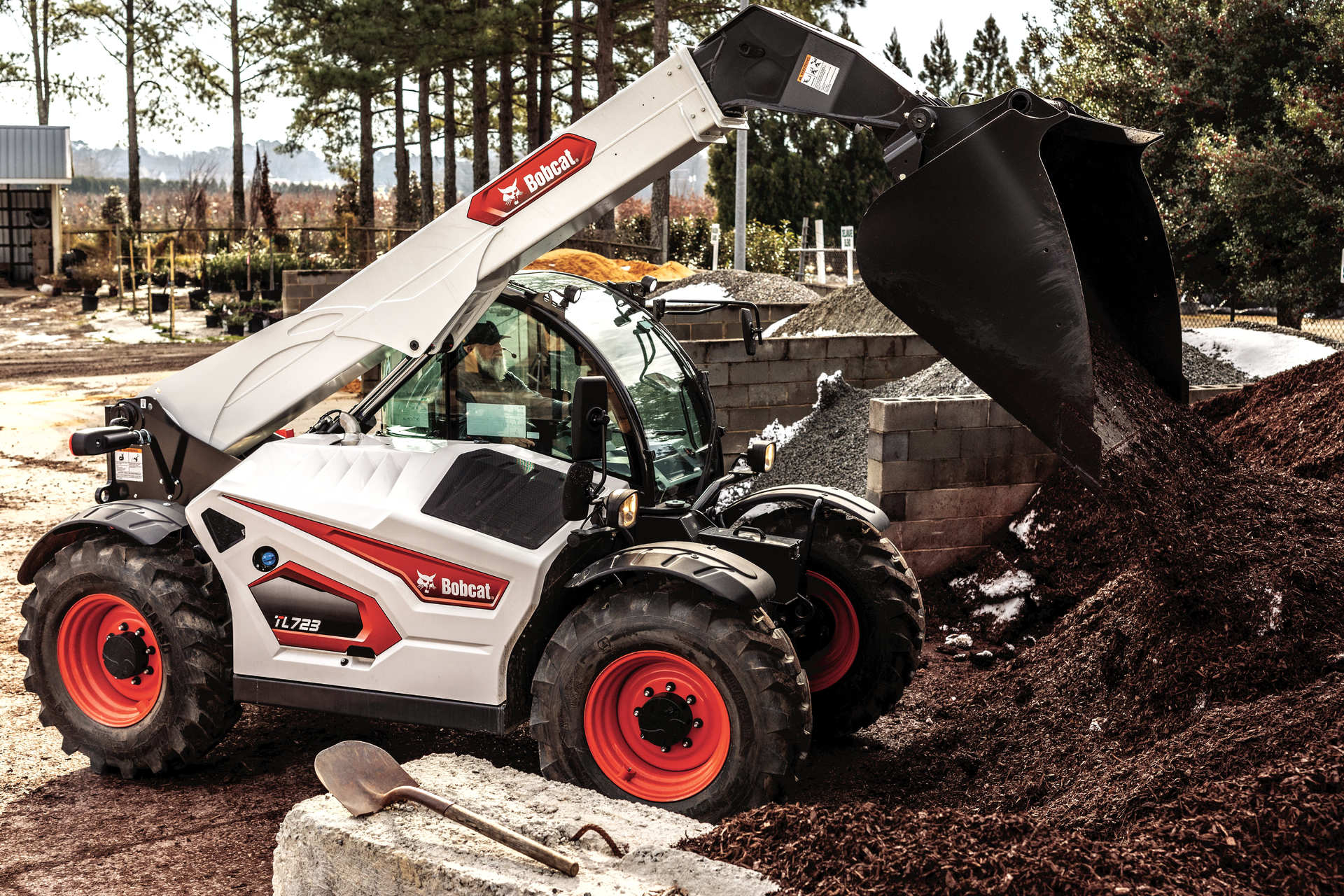

Models TL723 and TL923 Bobcat telehandlers are the latest in the R Series. The TL723 has a rated capacity of 7,700 pounds with a lift height of 22 feet 10 inches; the TL923 can lift 9,041 pounds to 23 feet 1 inch.

The TL723 is powered by a 100-horsepower Bobcat engine, and the TL923 engine is rated at 135 horsepower.

Bobcat TL923 hydraulics

The TL923 telehandler hydraulic system has been upgraded for faster boom speeds and heavier lifting. The patented hydraulic lift system provides advanced high-flow technology to optimize lift capabilities while providing high-speed movement, according to the company.

Five operation modes include:

  • ECO mode allows the operator to maintain hydraulic performance without using the engine’s full power, working with lower rpm, less noise, and lower fuel consumption.
  • Smooth Drive mode for maneuvering across job sites with mild acceleration and deceleration while carrying loads.
  • Dynamic Drive mode increases responsiveness of the telehandler’s acceleration and deceleration for traveling between tasks.
  • Flex Drive mode allows the operator to manage the engine speed independently from travel speed.
  • Advanced Attachment Control mode allows for full auxiliary hydraulic performance.

The low-profile boom sits below operator eye level to provide visibility, and the redesigned engine basket sits lower for increased line of sight. Multiple mirrors on the operator’s left and right provide added visibility when working in confined areas. Both telehandlers have a unique wrap-around rear-view window that gives operators a clear view of the side and rear of the machine.

A single, intuitive multi-control joystick dictates the travel direction, lift and tilt functions, boom extension, and auxiliary hydraulics. It also allows operators to control several machine functions at the same time and from one control point, enabling more precise control and higher productivity without having to remove their hand from the joystick.

Fingertip control access makes operation smooth and comfortable. On the front side of the joystick, the directional switch for forward, neutral and reverse can be operated with the index finger. The 2-speed travel switch, lift-arm float, boom extension, machine function settings and auxiliary hydraulics are located on the rear of the joystick.

Bobcat TL723 Telehandler Specs

  • Rated capacity: 7,700 lb.
  • Lift height: 274”
  • Operating weight: 17,155 lb.
  • Power: 100 hp
  • Max reach: 161.5”
  • Bucket breakout force: 13,938 lb.-ft.

Bobcat TL723 Telehandler Specs

  • Rated capacity: 9,041 lb.
  • Lift height: 277”
  • Operating weight: 18,158 lb.
  • Power: 135 hp
  • Max reach: 162.3”
  • Bucket breakout force: 15,736 lb.-ft.
