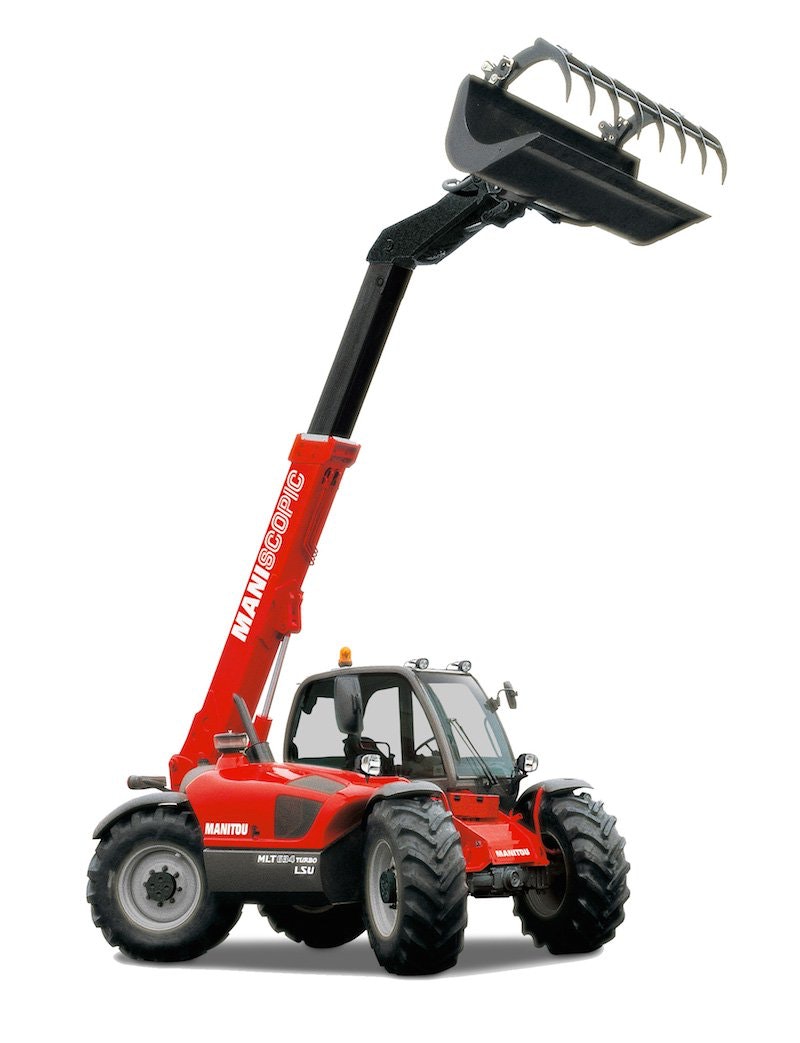

Manitou MLT 634 Telehandler

Nov. 18, 2014

Manitou MLT 634 telehandler has a maximum capacity of 7,000 pounds with a maximum lift height of 19 feet 10 inches. The 122-horsepower Tier 4-Interim Deutz diesel is paired with a power shuttle torque converter transmission offering four speeds, one in reverse, and 343 lb.-ft. of torque. Patented Duplex boom design features thin-walled, high-quality steel, the company says, which keeps overall weight down while providing strong lifting capacities.

Drive, boom and hydraulic functions are all controlled by the Joystick Switch and Move (JSM) control, leaving the other hand free to operate the steering wheel. A highly-visible dashboard displays the hour meter, speed, travel direction, engine temperature and maintenance reminders.

The quick-fit mounting system has an optional hydraulic lock for fast attachment changes without leaving the operator’s seat. Standard auxiliary hydraulics offer up to 39.6 gpm of flow.

Manitou MLT 634 Telehandler Specifications

  • Max lift capacity: 7,000 pounds
  • Max lift height: 19 feet 10 inches
  • Capacity at max height: 7,000 pounds
  • Turning radius: 12 feet 4 inches
  • Power: 122 horsepower
  • Transmission: power shuttle torque converter
  • Max travel speed: 21.7 mph
