First for Its Class: Vermeer Adds a Factory Cab Option to Its D24 Horizontal Directional Drill Rig

Long bore days test HDD operators. Hours in the seat. Noise in your ears. Weather in your face. This is not a good formula for a contented operator, and quality horizontal directional drilling operators are not easy to find. Vermeer is taking a swing at that problem with a gorgeous new factory cab for its D24 horizontal directional drill. It’s a notable move for the 24,000-pound class, where open stations still dominate. And so you know: It for sure wasn’t easy to engineer this sucker. From the press release:

"It was challenging to fit a cab in the available space of the D24, but Vermeer stepped up to the challenge with an interior width that is only a .25-in (.64 cm) narrower than the S3 cab used on the D24x40 S3 and D220x500 S3 HDDs," said Clint Recker, HDD product manager at Vermeer.

A factory cab in a compact class rig

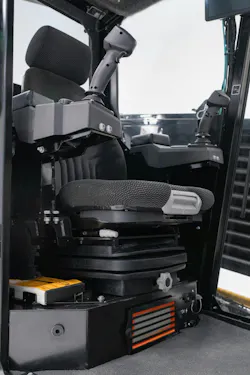

Vermeer says the D24 is the first drill in its class to offer a factory-installed cab. That alone stands out. Crews often run these mid-size rigs in rough weather and tight streets. A cab can extend working hours and seasons without beating up the operator, and operator retention is at the top of fleet managers' priority lists. The enclosure is fully sealed and climate controlled. The biggest immediate change is noise. The cab drops sound at the operator’s ear from 88 dB(A) to 72.6 dB(A). That’s a major reduction over a full shift. Less noise means less fatigue and clearer communication with the crew. Inside, operators get a high-back Grammer suspension seat. Cab mounts isolate vibration from the frame. The HVAC system is built for the jobsite. A top-mounted condenser keeps components away from debris and helps long-term durability. This looks well thought out.

Visibility still comes first for Vermeer’s D24

Comfort doesn’t mean much if you lose your sightlines. Vermeer kept that in check. According to the company, the rack-side window stays clear for direct visibility of the drill pipe. Other windows use a 50 percent tint to cut solar heat load. That helps keep the cab cooler without sacrificing awareness. There’s also a second windshield wiper on the left side. That’s actually pretty clever when you consider rod changes. Operators can keep their eyes on the work without stepping out. Easy visibility also equals more comfort. From that same press release:

"When an operator is more comfortable, they can stay focused on the bore," said Recker. "The D24 cab provides a quiet, climate-controlled workspace that makes it easy for the operator to communicate with the locator. That direct line of communication is vital for hitting tight tolerances and maintaining a safe jobsite."

That leads us into…

Communication and control upgrades

This new cab builds on an already capable drill. The D24 sits in the 24,000-pound class and targets urban utility work. It blends compact size with solid output. Power comes from a 100-horsepower Caterpillar C3.6 Tier 4 Final engine. The drill delivers up to 24,700 pounds of peak thrust and pullback. Continuous ratings sit at 22,000 pounds. Rotation torque reaches 3,080 feet-pounds. Spindle speeds top out at 198 revolutions per minute. Carriage speed hits 181 feet per minute, and there’s a 45-gallons-per-minute mud pump. Those numbers support faster production across long bores.

Cool tech on Vermeer’s D24 horizontal directional drilling rig

• Automated Rod Exchange (ARE) handles rod changes with a single command. It removes up to 19 manual steps. That saves time and reduces operator strain.
• Onboard diagnostics run through a touchscreen display. The system guides troubleshooting step by step. That helps crews get back to drilling faster.
• The hydraulic system uses premium components often found on larger rigs. The goal is longer life and fewer failures in the field.

Comfort meets production

The D24 cab is a practical upgrade. It doesn’t change the core performance. It changes how operators experience the machine. For fleet managers, that can mean more consistent output and happier crews. For operators, it means finishing the day with energy to do it again tomorrow.
