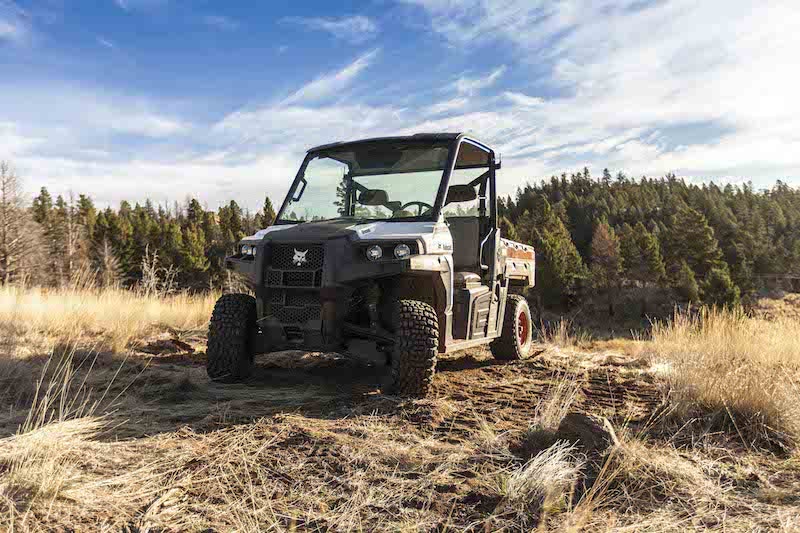

Bobcat 3600, 3650 Utility Vehicles Have Hydrostatic Drive
May 7, 2015
Related To:
The 3600 and 3650 compact utility vehicles feature a hydrostatic transmission system that can be adjusted to match load requirements, Bobcat says.
Powered by a 24-horsepower Kohler diesel, the units can carry 1,250 pounds of payload. Independent front dual A-arm suspension and rear de Dion suspension provides stability when hauling, Bobcat says
Multi-Attachment X-Change system (MAX) enables the 3650 to power front-mounted PTO-driven and non-PTO attachments.
Automatic engine shutdown is standard, automatically shutting off the engine if it experiences high engine coolant temperature or high hydrauilic oil temperature.
Bobcat Compact Utility Vehicle Specifications
3600
- Transmission: Hydrostatic
- Drive system: 4x4 and AWD
- Horsepower: 24
- Rated capacity: 1,750 pounds
- Towing capacity: 2,000 pounds
- Cargo box load capacity: 1,250 pounds
- Maximum travel speed: 30 mph
- Operating weight without cab: 1,955 pounds
3650
- Transmission: Hydrostatic, PTO engagement
- Drive system: 4x4 and AWD
- Horsepower: 24
- Maximum lift height: 2 feet
- Maximum lift capacity: 500 pounds
- Total vehicle rated capacity: 1,900 pounds
- Vehicle towing capacity: 2,000 pounds
- Cargo box load capacity: 1,250 pounds
- Maximum travel speed: 30 mph
- Operating weight without cab: 2,215 pounds
