Morbark 3400XT Wood Hog

March 8, 2017

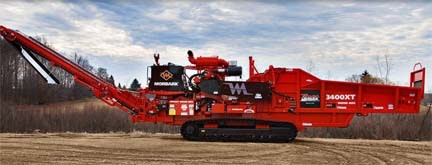

The 3400XT Wood Hog horizontal grinder accommodates engines from 540 to 800 horsepower (402 to 596 kW), making it ideal for a broad range of applications in a wide variety of markets.

Standard width is 8 feet 4 inches, making it within legal limits to transport in any country no matter what size engine is used.

A key feature the design of the infeed bed and the maintenance platform.

The infeed bed is an additional 24 inches longer with sloped sides to improve operator sight lines for more efficient loading of material. Standard on the 3400XT is a removable infeed chain return floor to allow excess material to fall away to minimize the wear on the floor, bed chain and inserts.

The variable-speed infeed system consists of one 34-inch diameter top compression feed roll; a direct-driven internal planetary drive with no chains and sprockets for lower maintenance, more torque and better durability; and four strands of WDH-120 chain in a staggered configuration.

Maintenance is quicker and easier to perform on the extended platform and area between the hood and the engine has been reconfigured to provide an additional 12 inches of working space.

The 3400XT is available with either Strickland or CAT undercarriage options and can be manufactured in a trailer or stationary unit.

The 3400XT is equipped with the Morbark Integrated Control System that allows the operator to automatically adjust feed rates and monitor pressures and feed wheel position to maximize production and engine efficiency. New smart device apps connect the machine to a phone or tablet via Bluetooth allow the machine to link directly to Morbark to update software settings and programs.
