Caterpillar M300D Series Wheeled Excavator

    May 29, 2012

    The M313D and M315D wheeled excavators from Caterpillar now have a welded undercarriage that allows a blade to be used front or rear, with or without outriggers at the nonblade end. The machines can also be fitted with outriggers front and rear. The in-cab monitor has been upgraded and has a 40-percent larger display area. Quick coupler is controlled with a new valve, and an audible signal from the monitor informs when the coupler is open. A new right-hand switch-panel module houses the rotary-throttle dial.

    Related To:

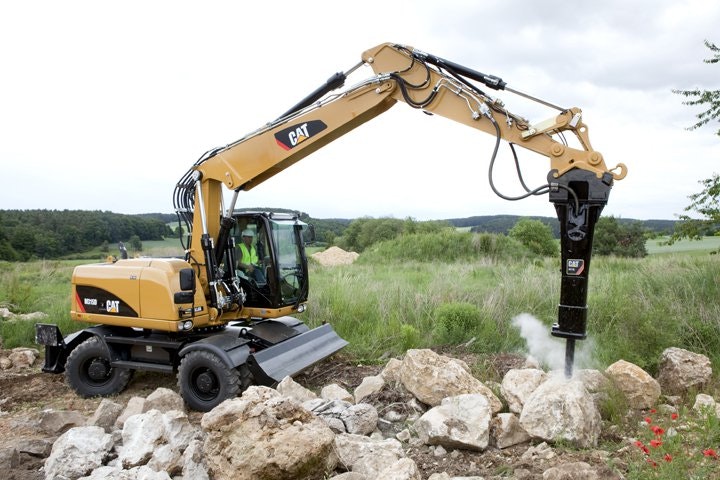

    1654786383124 Cat M315d Wheeled Excavator

    The M313D and M315D wheeled excavators from Caterpillar now have a welded undercarriage that allows a blade to be used front or rear, with or without outriggers at the nonblade end. The machines can also be fitted with outriggers front and rear. The in-cab monitor has been upgraded and has a 40-percent larger display area. Quick coupler is controlled with a new valve, and an audible signal from the monitor informs when the coupler is open. A new right-hand switch-panel module houses the rotary-throttle dial. Seat refinement includes a lumbar-support feature for the mechanically suspended seat, and a new low-frequency, air-suspended Comfort seat that features lumbar support, lockable horizontal suspension, mechanical height adjustment and passive climate control.

    Cat M300D Series Specifications

    M313D

    • Engine: Cat C4.4
    • Net Power: 129 horsepower
    • Optional Weight: 33,300 pounds
    • Max. Dig Depth: 19 feet
    • Max. Bucket Capacity: 1.20 cubic yards
    • Max. Speed: 23 mph

    M315D

    • Engine: Cat C4.4
    • Net Power: 137 horsepower
    • Optional Weight: 37,900 pounds
    • Max. Dig Depth: 20 feet
    • Max. Bucket Capacity: 1.65 cubic yards
    • Max. Speed: 21 mph
