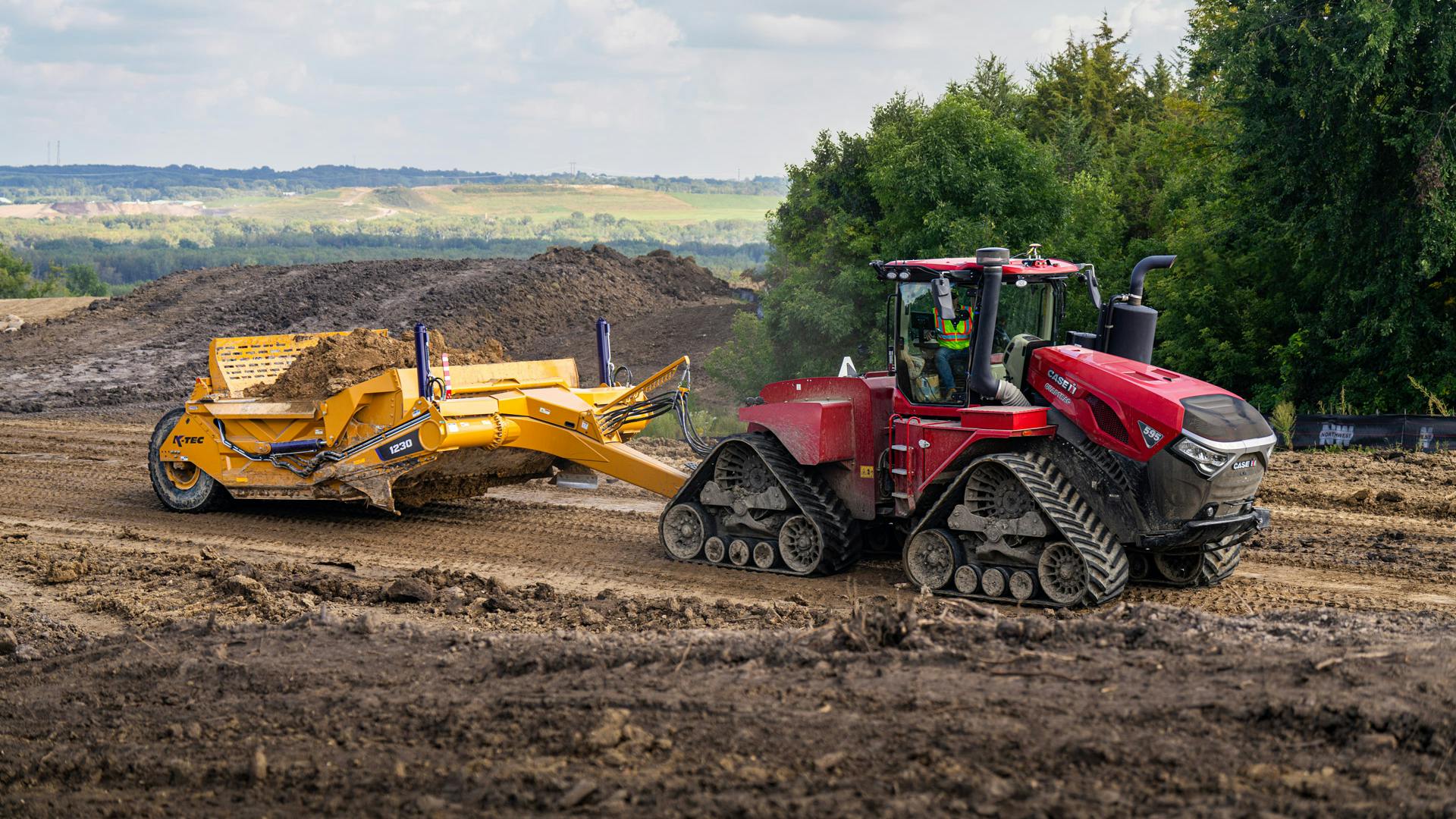

K-Tec 1230 Scraper
The 1230 K-Tec scraper has a maximum load rating of 72,000 pounds. It loads 16% more yards per hour than the K-Tec 1228, and when paired with a dozer push assist, it produces faster cut time and higher loads per cycle. In train configuration, the pull-type scraper moved 3% to 7% more yards per hour.
The scraper is designed for maximum strength with minimal weight, according to the company. It uses Hardox steels, precision cut components, and an optimized load path through the frame and hitch. It has a refined bowl geometry and tall cutting-edge clearance.
The push-block system has been upgraded to a bolt-on design, making it easier to service or replace. An optional push-roller provides a smooth interface when working with a dozer.
The 1230 uses low-maintenance slide blocks rather than ejector rollers as on the 1228. These provide more consistent ejection performance, simplifies maintenance, and lowers operating costs, according to the company.
K-Tec 1230 Scraper Specifications
- Heaped capacity: 30 cu. yd.
- Struck capacity: 18 cu. yd.
- Max loading rating: 72,000 lb.
- Cutting width: 12’
- Turning radius: 26’
