Three wheeled site dumpers mark Terramac’s entry to the wheeled dumper market. Terramac currently markets tracked carriers. Three styles of dumpers are included in the line: rear dump, swivel, and multiview swivel.

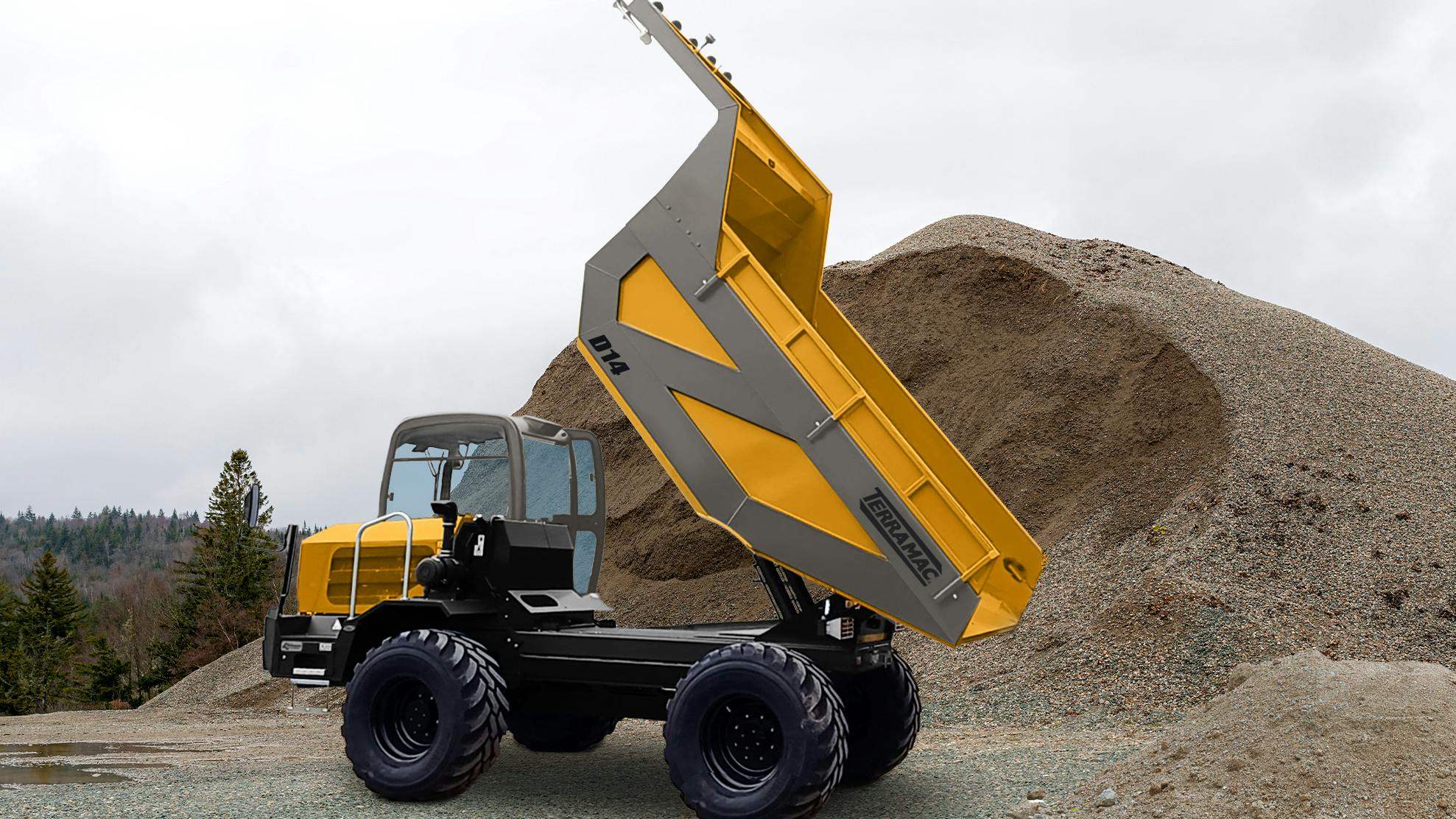

Rear dumpers are rigid-frame units with three steering modes: front only, four-wheel steer, and crab. Three models provide various load capacities. Model D6 has a heaped capacity of 8.0 yards and 13,230 pounds. The D12 heaped carries 10.8 yards and 26,455 pounds. The D14 has a heaped capacity of 10.9 yards and 30,865 pounds. Power for the dumpers are 72, 121, and 121 horsepower, respectively.
The DS70 swivel dumper (left) can carry 15,432 pounds with a heaped capacity of 4.7 yards. The 72-horsepower dumper rides on an articulated frame with a bed slewing angle of 180 degrees. Operating weight is 7,700 pounds.
Two multiview swivel dumpers include the articulated frame SV70 and the rigid frame 120TW. The operator’s station is a rotating turret mounted on a ball-bearing swivel ring. Operating weights are 9,240 and 17,550 pounds, respectively. The 73.7-horsepower SV70 has a carrying capacity of 15,400 pounds with a heaped capacity of 4.4 yards. The 121-horsepower 120TW has a carrying capacity of 26,455 pounds with a heaped capacity of 7.9 yards. Bed slewing angle is 180 degrees.
Watch a Terramac promotional video of the 120TW below.
