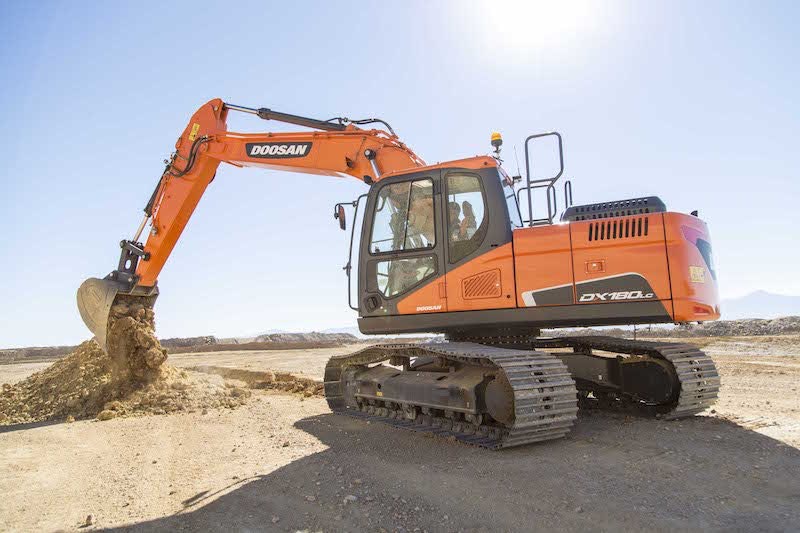

Doosan DX180LC-5 Excavator Upgraded to T4-F

Sept. 11, 2015

The Tier 4 Dash 5 DX180LC replaces the Tier 4-Interim DX180LC-3 excavator. The machine has selectable Smart Power Control (SPC), which uses Variable Speed Control and Pump Torque Control to improve machine efficiency. The engine control unit manages SPC by reducing engine rpm during low workload requirements and matching hydraulic pump torque and engine response to the task, Doosan says.

Auto shutdown allows operators to set idle time from 3 to 60 minutes. An improved 7-inch LCD screen allows operators to monitor the excavator parameters while viewing the rearview camera image. New additions to the monitor include the DEF gauge and improved fuel efficiency.

The Tier 4 engine uses a high-pressure common-rail (HP/CR) fuel-delivery system and CEGR, DOC, and SCR aftertreatment.

Doosan DX180LC-5 Excavator Specifications

  • Power: 129 net horsepower
  • Operating weight: 43,224 pounds
  • Max digging reach (ground): 29 feet 7 inches
  • Max digging depth: 20 feet
  • Bucket digging force: 28,881 lb.-ft.
  • Arm digging force: 20,503 lb.-ft.
