JCB 2TS-7T Teleskid CTL

Jan. 7, 2020

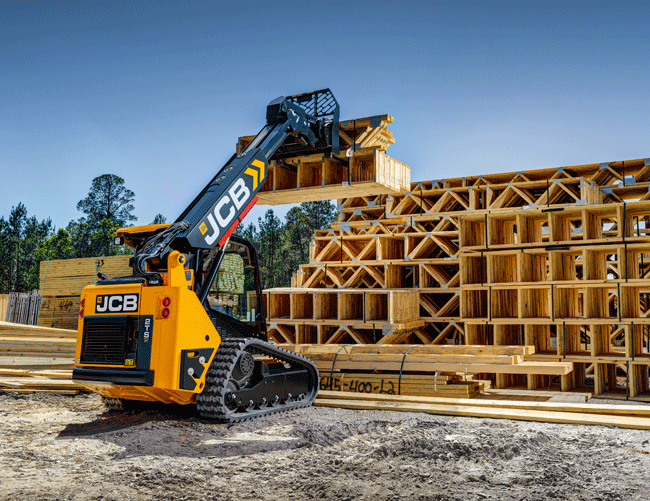

The JCB 2TS-7T Teleskid compact track loader has a telescopic boom and is based on the company’s small-platform skid steer chassis. It is powered by a 74-horsepower JCB by Kohler engine that meets Tier 4-F emissions standards without diesel exhaust fluid diesel particulate filter. Operating weight is 9,914 pounds.

Rated operating capacity is 2,096 pounds with the boom retracted and 1,140 pounds fully extended. Maximum lift height is 11 feet 10 inches, forward reach is 7 feet, dig depth is 2 feet.

Standard hydraulic flow is 18.6 gpm with a high-flow rate of 29.4 gpm available as an option. optional high-flow rate of 29.4 gpm. It has switchable ISO/H-pattern controls.

Lift height is 11 feet, and the boom extends for 7 feet of forward reach. The boom is mounted on the side of the CTL, giving the operator 270 degrees of vision around the job site.

The machine also features electric over hydraulic controls, optional switchable ISO/H-pattern controls, and a 7-way multifunction joystick.

A standard-fit electronic quick hitch with a fully enclosed tilt cylinder limits the buildup of material that might obstruct the operator’s view. The quick hitch is compatible with all skid steer and compact track loader attachments, with a single-point quick hitch lock-and-unlock indicator for enhanced visibility.

The 2TS-7T’s cab is climate controlled, and a canopy option is available. With an operating weight of 9,914 pounds on the cab model and 9,782 pounds on the canopy model, the JCB 2TS can easily be transported on a trailer.

All filters are located toward the rear of the machine for ease of access. JCB’s Smoothride System also allows the loader arms to float, counteracting variations in road or site surfaces. This provides better load retention and operator comfort.
