Yanmar Wheel Loader Line

Feb. 28, 2022

Four models comprise the lineup of Yanmar wheel loaders: V4-7, V8, V10, and V12.

Operating weights range from 8,422 pounds to 15,432 pounds; bucket capacities range from 0.65 cubic yards to 2.35 cubic yards; travel speeds range from 11.8 mph to 22 mph.

Cabs have dual doors for easy entry from each side. Intuitive controls include fixed travel speed mode, fully automatic accelerator mode, and auxiliary hydraulics with proportional control.

The V4-7, V8, and V10 Yanmar wheel loaders are powered by Yanmar diesels, and the V12 has a Deutz diesel engine.

The V8, V10, and V12 have parallel lift, and the V4-7 has a z-bar with an auto-leveler mode for applications where it is more beneficial to maintain a consistently level bucket.

All four models come with a 3-year/3,000-hour warranty.

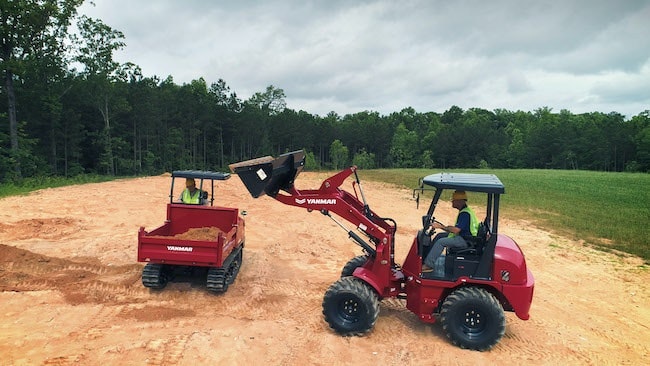

Yanmar V4-7 Loader Specs

  • Operating weight: 8,422 lb.
  • Power: 39 hp @ 2,500 rpm
  • Tipping load, straight: 6,070 lb.
  • Bucket capacity: 0.65 cu. yd.

Yanmar V8 Loader Specs

  • Operating weight: 10,802 lb.
  • Power: 62 hp @ 2,200 rpm
  • Bucket capacity: 1.05 to 1.57 cu. yd.
  • Tipping load, straight: 8,311 lb.

Yanmar V10 Loader Specs

  • Operating weight: 12,786 lb.
  • Power: 72 hp @ 2,200 rpm
  • Bucket capacity: 1.31 to 2.03 cu. yd.
  • Tipping load, straight: 9,634 lb.

Yanmar V12 Loader Specs

  • Operating weight: 15,432 lb.
  • Power: 100 hp @ 2,200 rpm
  • Bucket capacity: 1.57 to 2.35 cu. yd.
  • Tipping load, straight: 11,023 lb.
