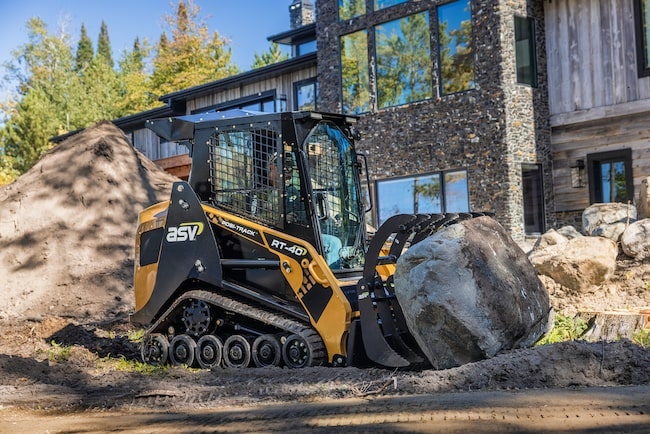

ASV RT-40 Compact Track Loader

Dec. 17, 2021

The RT-40 ASV compact track loader has been updated with a Yanmar 38.2-horsepower diesel engine. Rated operating capacity at 35 percent for the CTL is 931 pounds, an the optional idler wheels full-metal-face seal package increased ROC to 1,008 pounds. Operating weight is 4,005 pounds, and tipping load is 2,660 pounds.

Variable auxiliary hydraulic flow can operate efficiently at a high auxiliary circuit flow rate, says the company, powered by 13.3 gpm of pump capacity and 3,000 psi of system pressure.

Cab entry and exit is easier than the previous model, and operators have more hip room due to the new single-sided lap bar. Partially adjustable armrests and a tall cab improves comfort for operators of different sizes.

A new frameless front door includes floor-to-ceiling glass area, allowing operators to better see their work and attachments. The cab’s large side and rear windows provide additional lines of sight. This is further improved by the bright rear LED light and adjustable front pedestal lighting.

ASV RT-40 CTL Specs

  • ROC, 35%: 931 lb.
  • Operating weight: 4,005 lb.
  • Tipping load: 2,660 lb.
  • Power: 38.2 hp
  • Hinge pin height: 101 in.
