Equipment Type

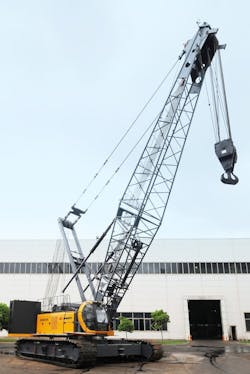

Sany SCC8150 Crawler Crane

Lattice-boom crawler crane has a rated lift capacity of 165 tons and fits between Sany’s 110-ton SCC8100 and its 220-ton SCC8200 crane.

July 02, 2013

Sany SCC8150 lattice-boom crawler crane has a rated lift capacity of 165 tons and fits between Sany’s 110-ton SCC8100 and its 220-ton SCC8200 crane. Maximum capacity is at a radius of 16.1 feet, and it can be configured with a main boom that reaches to 269 feet or a fixed jib up to 102 feet long. It is powered by a 340-horsepower Tier 4-Interim Cummins engine. Rexroth hydraulic system includes main pump, main valve, and servo control. Independently driven drums include hydraulically powered planetary gears. Independently driven crawler assemblies enable forward and reverse travel, pivot steering, and counter rotation. Outfitted with up to 1,148 feet of 1-inch Diepa Rope, the rated line pull of the crane’s main winch is 29,542 pounds and maximum line speed of 580 feet per minute. Without track frames and with boom butt, the crane weighs 99,208 pounds and measures 53.5 feet long and 11.5 feet wide.
