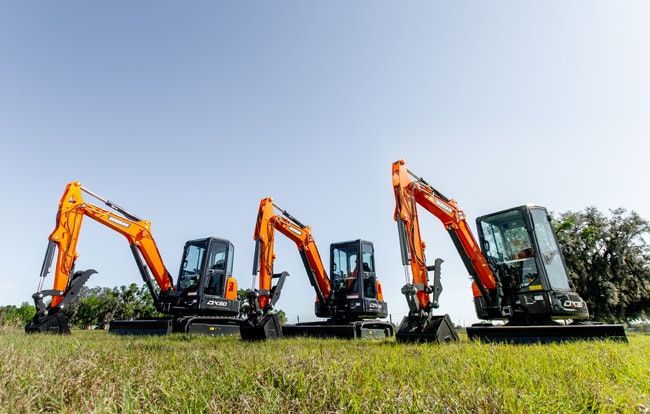

Doosan Infracore DX35-5, DX42-5, DX50-5 Excavators

April 30, 2019

Three models have been added to Doosan Infracore’s North American line of excavators—DX35-5, DX42-5, and DX50-5—with operating weights of 7,909; 9,246; and 10,677 pounds; respectively. Dig depths are 10 feet 3 inches, 10 feet 6 inches, and 11 feet 7 inches.

The 33.5-horsepower DX35-5 is a zero-tail-swing model with bucket breakout force of 6,968 lb.-ft. The 42.7-horsepower DX42-5 is conventional tail swing with 9.183 lb.-ft. breakout force. The DX50-5 has 49.8 horsepower and 8,977 lb.-ft. of breakout force.

Doosan Excavator Specifications

DX35-5

  • Engine: 33.5 hp
  • Operating weight: 7,909 lb.
  • Bucket breakout force: 6,968 lb.-ft.
  • Maximum dig depth (with standard arm): 10 ft. 3 in.
  • Width: 69 in.
  • Tail swing overhang: 0 in.

DX42-5

  • Engine: 42.7 hp
  • Operating weight: 9,246 lb.
  • Bucket breakout force: 9,183 lb.-ft.
  • Maximum dig depth (with standard arm): 10 ft. 6 in.
  • Width: 69 in.
  • Tail swing overhang: 17 in.

DX50-5

  • Horsepower: 49.8 hp
  • Operating weight: 10,677 lb.
  • Bucket breakout force: 8,977 lb.-ft.
  • Maximum dig depth (with standard arm): 11 ft. 7 in.
  • Width: 77.2 in.
  • Tail swing overhang: 0.6-in.
